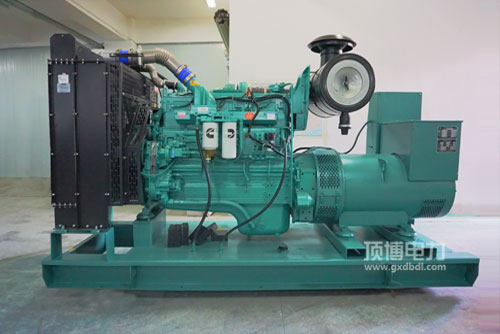

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯风能发电用打火机气油可靠性性好: 一流的气油掌控整体，代表性的STC、ESTC 分类掌控整体，特俗定制的发动机活塞顶面点燃室，直流高压喷洒气油，彻底吸雾，点燃彻底。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯火力发电用打火机瞬态功能优秀: 完美无瑕的打火机布局设计，加上康明斯特点的EFC软件系统，掌控精确度大，回复耗时快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯火力发电用热车机升耗油率高: 总体设置狭窄.外型装置合理的，操作稳定性。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷cpu类型 QSNT. QSK19. QSK38. QSK50充分满足中国人非道路施工第四时段及美国Tier2. Tier 3直接排放条例标准。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零备品备件能得性好， 打着机正常运行及保护维修保养便利店加盟，生产成本又。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

马力标准 Power Range   224-310KW类型 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L形状尺寸规格 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净的质量 Dry Weight   940kg

224-310KW康明斯来发电用打火机的特征 ：容积小， 压缩的比低， 除雾器空气质量蒸汽加热，利于重启，手机端汽车导航电源模块的首推。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

发起机型号规格	选用效率(kW)Prime Power	备品公率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
